Optical Sensor iCs

The Optical Sensor iCs combine optical sensors with on-chip amplification and signal processing providing high EMI immunity and daylight suppression for an extensive list of applications.

Applications:

Photoelectric sensors
Identification systems
Scanners
Spectroscopy
Machine vision systems
Position encoders

iC-Haus Optical Sensor iCs:

iC-LF	128x1 Linear Image Sensor with Electronic Shutter Function Key Features: 128 active photo pixels of 56 µm at a pitch of 63.5 µm (400 DPI) Integrating L-V conversion followed by a sample-and-hold circuit High sensitivity and uniformity over wavelength High clockrates of up to 5 MHz Shutter function enables flexible integration times Push-pull output amplifier Pin-to-pin compatible with TSL1401 at higher speed and sensitivity Applications: Optical linear sensors CCD substitute Download iC-LF technical documentation Download material about iC-LF Evaluation Kits and Tools More information about iC-LF1401 (iC-Haus website in English)
iC-LFH Series	High Resolution Linear Image Sensors Key Features: 1024 / 960 / 640 / 320 active photo pixels with 12.7 μm x 600 μm (2000 DPI) Pin-selectable resolution of 2000, 1000, 500 and 250 DPI (binning or averaging selectable) High sensitivity and uniformity over wavelength High pixel clock rate of up to 5 MHz Integrating L-V conversion followed by a sample & hold circuit Asynchronous, global shutter enables flexible integration times 3 V capable analog output with separate supply pin Push-pull output amplifier Applications: Triangulation sensors Contact image sensors CCD replacement Download iC-LFH Flyer (Chinese) Download iC-LFH Series technical documentation Download material about iC-LFH Series Evaluation Kits and Tools More information about iC-LFH (iC-Haus website in English)
iC-LFL	256x1 Gap-Free Linear Image Sensor with Electronic Shutter Function Key Features: 256 active photo pixels of 56 µm at a gap-free pitch of 63.5 µm (400 DPI) Integrating L-V conversion followed by a sample-and-hold circuit High sensitivity and uniformity over wavelength High clockrates of up to 5 MHz Only 256 clocks required for readout Shutter function enables flexible integration times Push-pull output amplifier Function equivalent to TSL1402 (serial mode) Applications: Optical linear sensors CCD substitute Download iC-LFL technical documentation Download material about iC-LFL Evaluation Kits and Tools More information about iC-LFL (iC-Haus website in English)
iC-LFM	64x1 Linear Image Sensor with Electronic Shutter Function Key Features: 64 active photo pixels of 56 µm at a pitch of 63.5 µm (400 DPI) Integrating L-V conversion followed by a sample-and-hold circuit High sensitivity and uniformity over wavelength High clockrates of up to 5 MHz Only 64 clocks required for readout Shutter function enables flexible integration times Push-pull output amplifier Applications: Optical linear sensors CCD substitute Download iC-LFM technical documentation More information about iC-LFM (iC-Haus website in English)
iC-LFS	32x1 Linear Image Sensor with Electronic Shutter Function Key Features: 32 active photo pixels of 56 µm at a pitch of 63.5 µm (400 DPI) Integrating L-V conversion followed by a sample-and-hold circuit High sensitivity and uniformity over wavelength High clockrates of up to 5 MHz Only 32 clocks required for readout Shutter function enables flexible integration times Push-pull output amplifier Applications: Optical linear sensors CCD substitute Download iC-LFS technical documentation Download material about iC-LFS Evaluation Kits and Tools More information about iC-LFS (iC-Haus website in English)

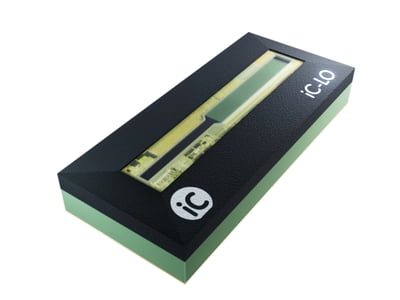

iC-LO	Smart Triangulation Sensor IC Key Features: Specially formed line image sensor comprising 129 elements High ambient light suppression of up to 100 kLux with filter glass Dynamic range of 100 dB 2 antivalent switching outputs Alarm message output High switching frequencies Low latency Current or light-power control (ACC or APC) selectable per channel Dual A/D converter for analog levels monitoring Serial programming interface (SPI or I2C compliant) Laser channel disable with programmable overcurrent threshold Low drop linear regulator for 3.3 V Optimized for N-type laser diodes Applications: Diffuse reflective photoelectric sensors Download iC-LO technical documentation Download material about iC-LO Evaluation Kits and Tools Download iC-LO Software More information about iC-LO (iC-Haus website in English)
iC-LQNP	Pulse and AC Light Sensor with Complementary Outputs Key Features: Fast response amplifier with on-chip photodiode High interference immunity due to monolithic design Active photodiode area of ca. 1 mm² Suitable for visible light and near infrared Integrated band-pass filter with 140 kHz center frequency High LF and DC (ambient) light suppression Complementary analogue current source/sink outputs, transimpedance can be set by external resistor Single 5 to 12 V supply, low power consumption also with bright ambient light Applications: Amplification of pulse and AC light signals Receiver for through beam and reflection light barriers with background suppression (sunlight) e.g. for presence detection in power operated gates, doors and windows etc. Download iC-LQNP technical documentation More information about iC-LQNP (iC-Haus website in English)
iC-OD Series	Optical Position-Sensitive Detector (PSD) with Ambient Light Suppression Key Features: Low-noise current amplifier with an integrated position-sensitive photodiode Effective photodiode area 2.6 mm × 0.88 mm (iC-OD), longer version with 8.4 mm × 0.88 mm available (iC-ODL) High sensitivity for visible light and near infrared Integrated bandpass filter with 100 kHz center frequency High background light suppression Analogue output as current source Low power consumption from 3.9 to 13.2 V supply voltage Applications: Position-sensitive detection of pulse lights Receiver for motion or proximity sensors Download iC-OD Series technical documentation More information about iC-OD Series (iC-Haus website in English)
iC-VP	Photoswitch with Adjustable Sensitivity Key Features: High spectral sensitivity Sensitive to visible light and near infrared Adjustable threshold Short switching time Supply voltage of 4.5 to 16 V Photosensor size: 400 µm × 400 µm Applications: Receiver for reflecting and nonreflecting light barriers Multichip modules for absolute encoders Download iC-VP technical documentation More information about iC-VP (iC-Haus website in English)

Return to sensor products page
