光学传感器芯片
iC-Haus 光学传感器iC联合光学传感器,集成放大器和信号处理电路,成就大范围应用的抗电磁干扰性强和环境光抑制产品。
应用:
- 光电传感器
- 识别系统
- 扫描仪
- 光谱学
- 机械视觉系统
- 位置编码器
iC-Haus 光学传感器芯片:
iC-LF
|
128x1 线性图像传感器, 带电子快门功能
特性:
- 128 active photo pixels of 56 µm at a pitch of 63.5 µm (400 DPI)
- Integrating L-V conversion followed by a sample-and-hold circuit
- High sensitivity and uniformity over wavelength
- High clockrates of up to 5 MHz
- Shutter function enables flexible integration times
- Push-pull output amplifier
- Pin-to-pin compatible with TSL1401 at higher speed and sensitivity
应用:
- Optical linear sensors
- CCD substitute
下载 iC-LF 的技术文档
下载 iC-LF 的评估套资料
更多信息关于 iC-LF (iC-Haus 英文网站)
|
iC-LFH 系列
|
高解析度线性图像传感器
特性:
- 1024 / 960 / 640 / 320 active photo pixels with 12.7 μm x 600 μm (2000 DPI)
- Pin-selectable resolution of 2000, 1000, 500 and 250 DPI (binning or averaging selectable)
- High sensitivity and uniformity over wavelength
- High pixel clock rate of up to 5 MHz
- Integrating L-V conversion followed by a sample & hold circuit
- Asynchronous, global shutter enables flexible integration times
- 3 V capable analog output with separate supply pin
- Push-pull output amplifier
应用:
- Triangulation sensors
- Contact image sensors
- CCD replacement
下载 iC-LFH 系列简单介绍 (中文版)
下载 iC-LFH 系列的技术文档
下载 iC-LFH 系列的评估套资料
更多信息关于 iC-LFH 系列 (iC-Haus 英文网站)
|
iC-LFL
|
256x1 无间隙线性图像传感器, 带电子快门功能
特性:
- 256 active photo pixels of 56 µm at a gap-free pitch of 63.5 µm (400 DPI)
- Integrating L-V conversion followed by a sample-and-hold circuit
- High sensitivity and uniformity over wavelength
- High clockrates of up to 5 MHz
- Only 256 clocks required for readout
- Shutter function enables flexible integration times
- Push-pull output amplifier
- Function equivalent to TSL1402 (serial mode)
应用:
- Optical linear sensors
- CCD substitute
下载 iC-LFL 的技术文档
下载 iC-LFL 的评估套资料
更多信息关于 iC-LFL (iC-Haus 英文网站)
|
iC-LFM
|
64x1 线性图像传感器, 带电子快门功能
特性:
- 64 active photo pixels of 56 µm at a pitch of 63.5 µm (400 DPI)
- Integrating L-V conversion followed by a sample-and-hold circuit
- High sensitivity and uniformity over wavelength
- High clockrates of up to 5 MHz
- Only 64 clocks required for readout
- Shutter function enables flexible integration times
- Push-pull output amplifier
应用:
- Optical linear sensors
- CCD substitute
下载 iC-LFM 的技术文档
更多信息关于 iC-LFM (iC-Haus 英文网站)
|
iC-LFS
|
32x1 线性图像传感器, 带电子快门功能
特性:
- 32 active photo pixels of 56 µm at a pitch of 63.5 µm (400 DPI)
- Integrating L-V conversion followed by a sample-and-hold circuit
- High sensitivity and uniformity over wavelength
- High clockrates of up to 5 MHz
- Only 32 clocks required for readout
- Shutter function enables flexible integration times
- Push-pull output amplifier
应用:
- Optical linear sensors
- CCD substitute
下载 iC-LFS 的技术文档
下载 iC-LFS 的评估套资料
更多信息关于 iC-LFS (iC-Haus 英文网站)
|

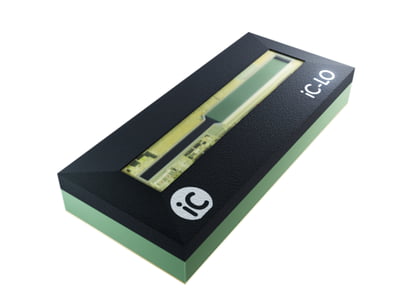

iC-LO
|
智能三角定位传感器芯片
特性:
- Specially formed line image sensor comprising 129 elements
- High ambient light suppression of up to 100 kLux with filter glass
- Dynamic range of 100 dB
- 2 antivalent switching outputs
- Alarm message output
- High switching frequencies
- Low latency
- Current or light-power control (ACC or APC) selectable per channel
- Dual A/D converter for analog levels monitoring
- Serial programming interface (SPI or I2C compliant)
- Laser channel disable with programmable overcurrent threshold
- Low drop linear regulator for 3.3 V
- Optimized for N-type laser diodes
应用:
- Diffuse reflective photoelectric sensors
下载 iC-LO 的技术文档
下载 iC-LO 的评估套资料
下载 iC-LO 的软件
更多信息关于 iC-LO (iC-Haus 英文网站)
|
iC-LQNP
|
脉冲和交流光电编码器, 互补输出
特性:
- Fast response amplifier with on-chip photodiode
- High interference immunity due to monolithic design
- Active photodiode area of ca. 1 mm²
- Suitable for visible light and near infrared
- Integrated band-pass filter with 140 kHz center frequency
- High LF and DC (ambient) light suppression
- Complementary analogue current source/sink outputs, transimpedance can be set by external resistor
- Single 5 to 12 V supply, low power consumption also with bright ambient light
应用:
- Amplification of pulse and AC light signals
- Receiver for through beam and reflection light barriers with background suppression (sunlight) e.g. for presence detection in power operated gates, doors and windows etc.
下载 iC-LQNP 的技术文档
更多信息关于 iC-LQNP (iC-Haus 英文网站)
|
iC-OD 系列
|
光学位置敏感探测, 环境光抑制
特性:
- Low-noise current amplifier with an integrated position-sensitive photodiode
- Effective photodiode area 2.6 mm × 0.88 mm (iC-OD), longer version with 8.4 mm × 0.88 mm available (iC-ODL)
- High sensitivity for visible light and near infrared
- Integrated bandpass filter with 100 kHz center frequency
- High background light suppression
- Analogue output as current source
- Low power consumption from 3.9 to 13.2 V supply voltage
应用:
- Position-sensitive detection of pulse lights
- Receiver for motion or proximity sensors
下载 iC-OD 系列的技术文档
更多信息关于 iC-OD 系列 (iC-Haus 英文网站)
|
iC-VP
|
可调灵敏度光电开关
特性:
- High spectral sensitivity
- Sensitive to visible light and near infrared
- Adjustable threshold
- Short switching time
- Supply voltage of 4.5 to 16 V
- Photosensor size: 400 µm × 400 µm
应用:
- Receiver for reflecting and nonreflecting light barriers
- Multichip modules for absolute encoders
下载 iC-VP 的技术文档
更多信息关于 iC-VP (iC-Haus 英文网站)
|
