The Laser Drivers portfolio is dedicated to operate all types of CW and pulsed semiconductor laser diodes.
The iCs provide fast switching, avoid overshooting by patented circuitries, and feature various monitoring safety functions. Different laser driver control modes are available, such as constant current or constant optical power (requiring a laser diode with monitor diode).
iC-HB
|
Triple 155 MHz Laser Switch with LVDS Inputs
Key Features:
- Laser switch for frequencies from CW up to 155 MHz
- Spike-free switching of the laser currents
- Three channels with independent current control at pins CIx
- Operates as a voltage-controlled current sink
- Pulsed operation with up to 300 mA per channel
- CW operation with up to 65 mA per channel
- Laser current monitor output
- Thermal shutdown with error output
Applications:
- Laser printers
- Data transmission
- Laser scanning devices
 Download iC-HB Datasheet
Package Dimensions DFN, QFN
More information about iC-HB (iC-Haus website in English)
|
|
iC-HG
|
200 MHz Laser Switch for up to 9 A (pulsed)
Key Features:
- Six channel laser switch from CW up to 200 MHz
- CW operation with up to 500 mA per channel (1.5 A pulsed)
- Spike-free switching of the laser current
- TTL inputs (6 x 1 channel) or LVDS inputs (3 x 2 channels)
- Operates as six independent voltage-controlled current sinks
- Switching outputs (LDKx) are 12 V capable for blue/green laser diodes
- Fast and slow switching mode
- Simple current control at pins CIx
- Wide supply voltage range from 3 to 5.5 V
- Parallel connected channels for up to 3 A operation (9 A pulsed) from a single IC
- Multiple iC-HG in parallel for even higher currents
- Open drain error output, thermal shutdown
Applications:
- Pump lasers
- Laser projection
- Laser TV
- Camera lighting
- TOF (Time-Of-Flight) lighting
- LIDAR lighting
Download iC-HG Flyer
Download iC-HG Datasheet
Download Demoboard Description iC-HG HG2M
Download Demoboard Description iC-HG HG8M
Download Host Adapter Description HG2D
Package Dimensions DFN, QFN
More information about iC-HG (iC-Haus website in English)
|
|
iC-HG30
|
250 MHz Laser Switch for up to 30 A (pulsed) - (new)
Key Features:
- Six channel laser switch from CW up to 250 MHz
- CW operation with up to 1 A per channel
- Pulsed operation with up to 5 A per channel
- Spike-free switching of the laser current
- 6 x 1 channels with TTL inputs
- 3 x 2 channels with LVDS inputs
- Operates as six independent voltage controlled current sinks
- Outputs (LDKx) are 30 V capable for stacked laser diodes
- Simple current control at pins CIx
- CIx voltage < 3 V for full CW current
- Wide supply voltage range from 3 to 5.5 V
- All channels can be paralleled for up to 6 A CW and 30 A pulsed operation
- Open drain error output
- Thermal shutdown
Applications:
- TOF camera lighting
- LIDAR lighting
- Pump lasers
- Laser projection
- Laser TV
- Data transmission
- Camera lighting
Download iC-HG30 Datasheet
More information about iC-HG30 (iC-Haus website in English)
|
|
iC-HGP
|
200 MHz High-Side Laser Switch for up to 9 A (pulsed) - (new)
Key Features:
- Six channel laser switch from CW up to 200 MHz
- CW operation with up to 500 mA per channel (1.5 A pulsed)
- Spike-free switching of the laser current
- TTL inputs (6 x 1 channel) or LVDS inputs (3 x 2 channels)
- Operates as six independent voltage-controlled current sources
- Laser supplies are 12 V capable for blue/green laser diodes
- Fast and slow switching mode
- Simple current control at pins CIx
- Wide supply voltage range from 3 to 5.5 V
- Parallel connected channels for up to 3 A operation (9 A pulsed) from a single IC
- Multiple iC-HG in parallel for even higher currents
- Open drain error output, thermal shutdown
Applications:
- Pump lasers
- Laser projection
- Laser TV
- Data transmission
- TOF (Time-Of-Flight) lighting
- LIDAR lighting
Download iC-HGP Datasheet
More information about iC-HGP (iC-Haus website in English)
|
|
iC-HK Series
|
155 MHz Dual Channel Spike-Free Laser Switch
Key Features:
- Laser switch for frequencies from CW up to 155 MHz
- Spike-free switching of the laser current
- Dual switching inputs with independent current control
- Operates as a voltage-controlled current source
- Pulsed operation with up to 700 mA per channel
- CW operation with up to 150 mA per channel
- Simple power control at pin CI
- Thermal shutdown
- Supplement to iC-WK/L for pulsed operation
- iC-HKB for driving blue laser diodes
Applications:
- Data transmission
- Laser scanning devices
- Optical storage devices
Download iC-HK(B) Flyer
Download iC-HK / iC-HKB Datasheet
Download iC-HK Application Note
Package Dimensions MSOP, SSOP, TSSOP
Package Dimensions SO
More information about iC-HK / iC-HKB (iC-Haus website in English)
|
|
iC-HL
|
Non-Volatile Laser Bias Potentiometer for Laser APCs
Not for new designs. Please refer to iC-HT / iC-HTP as replacement. Contact iC-Haus China for product change information and assistance if required. More information about iC-HL (iC-Haus website in English)
|
|
iC-HN Series
|
Short Pulse 1.4/2.8 A Laser Driver - (new)
Key Features:
- Pulsed operation with up to 1.4/2.8 A
- Spike-free switching of the laser current
- Operates as switched, voltage-controlled current sink
- Up to 30 V laser supply voltage
- LVDS switching input
Applications:
- TOF Range Finders
- LIDAR
- 3D scanning
- Gesture recognition
- IR security illumination
Download iC-HN Series Flyer (Chinese)
Download iC-HN Series Flyer (English)
Download iC-HN Datasheet
Download iC-HN3 Datasheet
Download Demoboard Description HN1M
More information about iC-HN Series (iC-Haus website in English)
|
|

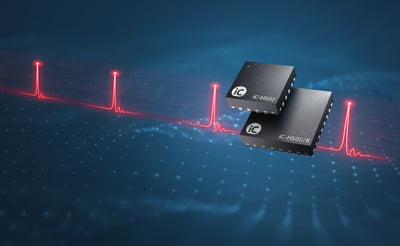

iC-HS Series
|
Ultra Short Pulse Laser Driver - (new)
Key Features:
- Pulse width from 100 ps up to 5 ns with 1 ps resolution
- Temperature-stabilized on-chip pulse generation
- Peak laser current up to 200 mA (iC-HS02) or 500 mA (iC-HS05)
- LVDS or TTL synchronization output with programmable delay
- LVDS or TTL trigger input
- Up to 200 MHz repetition frequency in LVDS mode
Applications:
- TOF Range Finders
- Short Range LIDAR
- 3D scanning
- Fluorescence spectroscopy
More information about iC-HS Series (iC-Haus website in English)
|
|
iC-HT
|
Dual CW Laser Diode Driver with SPI/I2C Controller Interface
Key Features:
- Dual CW with up to 750 mA per channel, parallel up to 1.5 A
- 2.8 V to 11 V power supply
- Operation with or without microcontroller
- Individual enable input per channel
- Control loop accuracy better than 1 %
- Internal programmable logarithmic monitor resistor
- Operating point setup with 10 bit logarithmic resolution
- Current or light-power control (ACC or APC) selectable per channel
- Dual A/D converter for analog levels monitoring
- Serial programming interface (SPI or I2C compliant)
- Laser channel disable with programmable overcurrent threshold
- Low drop linear regulator for 3.3 V
- Optimized for N-type laser diodes
Applications:
- Laser diode modules
- CW laser diode driver
- Embedded laser diode controller
- Safety oriented laser controller
Download iC-HT Flyer
Download iC-HT Datasheet
Download Demoboard Description HT1D
Software iC-HT (no RTE)
Software iC-HT (with RTE)
More information about iC-HT (iC-Haus website in English)
|
|
iC-HTG
|
Power CW Laser Diode Driver - (new)
Key Features:
- CW operation with external driver transistor
- ACC mode configurable with shunt
- APC mode configurable with monitor diode
- 3.3 to 24 V power supply
- Optimized for both N-type and P-type laser diodes
- Analog modulation frequency of up to 50 kHz
- Load current monitoring with shunt possible
- Internal programmable logarithmic monitor resistor
- Operating point setup with a 10 bit logarithmic resolution
- Serial programming interface (SPI or I2C compliant)
- Configuration content verifiable and activatable
- A/D converters for analog signal monitoring
- Low drop linear regulator for 3.3 V
- Low current standby mode
- Temperature monitor
- Operational Temperature -40 to +85 °C
Applications:
- Commercial VCSEL/LED/Laser diode modules
- Safety related CW laser diode drivers
- Structured-light 3D illumination
- Laser diode stack control
- Optical amplification, optical pumping
Download iC-HTG Flyer
Download iC-HTG Datasheet
Download Demoboard Description HTG1D
Software iC-HTG (no RTE)
Software iC-HTG (with RTE)
More information about iC-HTG (iC-Haus website in English)
|
|
iC-HTP
|
Dual CW P-Type Laser Diode Driver for up to 1.5 A
Key Features:
- Dual CW with up to 750 mA per channel, parallel up to 1.5 A
- 2.8 V to 11 V power supply
- Operation with or without microcontroller
- Individual enable input per channel
- Control loop accuracy better than 1 %
- Internal programmable logarithmic monitor resistor
- Operating point setup with 10 bit logarithmic resolution
- Current or light-power control (ACC or APC) selectable per channel
- Dual A/D converter for analog levels monitoring
- Serial programming interface (SPI or I2C compliant)
- Laser channel disable with programmable overcurrent threshold
- Low drop linear regulator for 3.3 V
- Optimized for P-type laser diodes or dual common cathode
- Low-power standby mode
- On-chip temperature sensing
Applications:
- Laser diode modules
- CW laser diode driver
- Embedded laser diode controller
- Safety oriented laser controller
- Structed-light 3D illuminations
- Multiple laser diode control
Download iC-HTP Flyer
Download iC-HTP Datasheet
Download Demoboard Description HTP1D
Software iC-HTP (no RTE)
Software iC-HTP (with RTE)
More information about iC-HTP (iC-Haus website in English)
|
|
iC-HV
|
VCSEL Array Driver - (new)
Key Features:
- Triple VCSEL switch from CW up to 200 MHz
- Chip-on-chip assembly of the VCSEL array onto the iC-HV
- CW operation with up to 1 A per switch
- Pulsed operation with up to 3 A per switch
- Inputs can be paralleled for full 3 A CW and 9 A pulsed current
- Spike-free switching of the VCSEL current
- TTL or LVDS switching inputs
- Operates as three switched, voltage-controlled current sinks
- Simple current control at pins CIx
- Wide supply voltage range from 3 to 5.5 V
- Open drain error output, thermal shutdown
Applications:
- Laser Illumination
- Camera lighting
- TOF camera lighting
- Gesture recognition
- LIDAR lighting
Download iC-HV Datasheet
Download iC-HVxxxV Datasheet
Download Demoboard Description HV1M
Download Host Adapter Description HG2D
More information about iC-HV (iC-Haus website in English)
|
|
iC-NZ
|
Fail-Safe Laser Diode Driver for CW and Pulse Operation up to 155 MHz
Key Features:
- Peak value controlled triple laser switch
- Operation from CW up to 155 MHz
- Spike-free switching
- Laser current of 100 mA per channel from 3.5 to 5 V supply voltage
- Single-failure proof with second monitor diode
- System-enable with self test
- Seperate setting of laser power via external resistors
- Strong suppression of transients with very small external capacitors
- Adjustable laser current limitation
- All current LD types can be used (M/P/N configurations)
- Error signal output at shutdown and current limitation
Applications:
- Laser light barriers
- Distance measurement
- Bar-code readers
- Laser projection
Download iC-NZ Flyer
Download iC-NZ Datasheet
Download Demoboard Description iC-NZ
Package Dimensions DFN, QFN
More information about iC-NZ (iC-Haus website in English)
|
|
iC-NZN
|
N-Type Laser Diode Driver with APC and ACC
Key Features:
- Peak value controlled laser diode driver for operation from CW up to 155 MHz
- Spike-free switching of laser currents of up to 300 mA
- Setting of laser power (APC) via external resistor
- Optional current control (ACC)
- Laser current limitation
- Safety shutdown with overtemperature
- Error signal output with overtemperature, undervoltage and overcurrent
- All current LD types can be used (N/P/M configurations)
- Blue laser diodes supported
Applications:
- Pulsed and CW LD modules
- Laser pointers
- Laser levels
- Bar-code readers
- Distance measurement
- Blue laser diodes
Download iC-NZN/iC-NZP Flyer
Download iC-NZN Datasheet
Package Dimensions DFN, QFN
More information about iC-NZN (iC-Haus website in English)
|
|
iC-NZP
|
P-Type Laser Diode Driver with APC and ACC
Key Features:
- Peak value controlled laser diode driver for operation from CW up to 155 MHz
- Spike-free switching of laser currents of up to 300 mA
- Setting of laser power (APC) via external resistor
- Optional current control (ACC)
- Laser current limitation
- Safety shutdown with overtemperature
- Error signal output with overtemperature, undervoltage and overcurrent
- All current LD types can be used (N/P/M configurations)
Applications:
- Pulsed and CW LD modules
- Laser pointers
- Laser levels
- Bar-code readers
- Distance measurement
Download iC-NZN/iC-NZP Flyer
Download iC-NZP Datasheet
Package Dimensions DFN, QFN
More information about iC-NZP (iC-Haus website in English)
|
|
iC-WJ Series
|
Laser Diode Driver for CW and Pulse Operation up to 300 kHz
Key Features:
- Simple APC adjustment via an external resistor
- Continuous (CW) or pulsed operation of up to 300 kHz
- Laser diode current of up to 250 mA
- Adjustable watchdog for input signals
- Soft power-on, thermal shutdown and low voltage protection
- Two monitor current ranges available: iC-WJ with 50 to 500 µA and iC-WJZ with 0.15 to 1.5 mA
- 5 V single supply operation
Applications:
- General purpose LD driver
Download iC-WJ / iC-WJZ Datasheet
Download iC-WJ / iC-WJZ Application Notes
Package Dimensions MSOP, SSOP, TSSOP
Package Dimensions SO
More information about iC-WJ / iC-WJZ (iC-Haus website in English)
|
|
iC-WJB
|
Laser Diode Driver for Battery Supplies of 2.7 V to 6 V
Key Features:
- Simple APC adjustment via an external resistor
- Continuous (CW) or pulsed operation of up to 300 kHz
- Laser diode current of up to 100 mA
- Adjustable watchdog for input signals
- Soft power-on and thermal shutdown protection
- Operation at 2.7 to 6 V with two to four AA/AAA cells
- Protection against reverse polarity
Applications:
- Battery supplied LD modules
- Laser pointers
Download iC-WJB Datasheet
Package Dimensions MSOP, SSOP, TSSOP
Package Dimensions SO
More information about iC-WJB (iC-Haus website in English)
|
|
iC-WK Series
|
Universal Laser Saver® for CW Operation from 2.4 V up
Key Features:
- iC-WK MSOP8 AEC-Q100 qualified (Grade 3)
- CW operation up to 90 mA from 2.4 to 6 V supply voltage
- Rapid soft start after power-on typical within 70 μs
- Simple power adjustment via the external resistor
- Control loop accuracy better than 1% with changes in temperature, supply voltage and load current
- Integrated reverse polarity protection for the iC and laser diode
- Strong suppression of transients with very small external capacitors; integrated flyback path
- Permanent shutdown with excessive temperature and overcurrent (i.e. if the laser diode is damaged or the feedbackcurrent path fails)
- Two feedback inputs permit all current LD types to be used (N/P/M configurations)
- Modulation via the feedback inputs is possible
- Wide monitor current range from 10 μA to 2.5 mA
- iC-WK with additional spike detection at monitor input MDA
Applications:
- Battery-powered LD modules
- Laser Pointers
- Levelling lasers
- Bar-code readers
Download iC-WK / iC-WKL Datasheet
Download Demoboard Description iC-WK
Download Module Description WK1D
Download Module Description WK2D
Download iC-WK / iC-WKL Application Notes
WK Selection Guide
Package Dimensions MSOP, SSOP, TSSOP
Package Dimensions SO
More information about iC-WK / iC-WKL (iC-Haus website in English)
|
|
iC-WKM
|
M-Type CW Laser Diode Driver, Optimized for (Blue) M-Type Laser Diodes
Key Features:
- Optimised for M-type laser diodes (single supply, case grounded)
- CW operation up to 350 mA from a single supply of up to 15 V
- Rapid soft start after power-on
- Simple power adjustment via an external resistor
- Control loop accuracy better than 3% with changes in temperature, supply voltage and load current
- Integrated reverse polarity protection for the iC and laser diode
- Strong suppression of transients with very small external capacitors; integrated flyback path
- Two feedback inputs permit all current LD types to be used (M/P/N configurations)
- Modulation via the feedback inputs is possible
- Wide monitor current range from 2.5 µA to 6.25 mA
Applications:
- Blue laser diodes
- LD modules
Download iC-WKM Flyer
Download iC-WKM Datasheet
Download Demoboard Description iC-WKM
WK Selection Guide
Package Dimensions DFN, QFN
Package Dimensions SO
More information about iC-WKM (iC-Haus website in English)
|
|
iC-WKN
|
N-Type CW Laser Diode Driver, Optimized for N-Type Laser Diodes
Key Features:
CW operation up to 300 mA from 2.4 to 15 V supply voltage
Rapid soft start after power-on
Simple power adjustment via an external resistor
Control loop accuracy better than 1.5% with changes in temperature, supply voltage and load current
Integrated reverse polarity protection for the iC and laser diode
Strong suppression of transients with very small external capacitors; integrated flyback path
Two feedback inputs permit all current LD types to be used (M/P/N configurations)
Modulation via the feedback inputs is possible
Wide monitor current range from 2.5 µA to 6.25 mA
Applications:
- Laser pointers
- LD modules
- Laser levels
- Barcode readers
- Distance measuring sensors
Download iC-WKN Flyer
Download iC-WKN Datasheet
Download Demoboard Description iC-WK
WK Selection Guide
Package Dimensions DFN, QFN
Package Dimensions SO
More information about iC-WKN (iC-Haus website in English)
|
|
iC-WKP
|
P-Type CW Laser Diode Driver, Optimized for P-Type Laser Diodes
Key Features:
Optimised for P-type laser diodes (case grounded)
CW operation up to 350 mA from 3 to 15 V supply voltage
Rapid soft start after power-on
Simple power adjustment via an external resistor
Control loop accuracy better than 2% with changes in temperature, supply voltage and load current
Integrated reverse polarity protection for the iC and laser diode
Strong suppression of transients with very small external capacitors; integrated flyback path
Second feedback input MDA also permits the operation of N-type laser diodes
Modulation via the feedback inputs is possible
Wide monitor current range from 2.5 µA to 6.25 mA
Applications:
- Laser pointers
- LD modules
- Laser levels
- Barcode readers
- Distance measuring sensors
Download iC-WKP Flyer
Download iC-WKP Datasheet
WK Selection Guide
Package Dimensions DFN, QFN
Package Dimensions SO
More information about iC-WKP (iC-Haus website in English)
|
中文
