Magnetic Sensor iCs

The Magnetic Sensor iCs provide differential magnetic field sensors based on Hall and AMR technology.

These magnetic sensors offer high performance with high EMI immunity, making them suitable for industrial applications. The hall switch provides directly a digital output with integrated line driver, while the AMR sensors provide strong analog sine/cosine signals which can be interpolated.

Applications:

Linear position sensing
Gear tooth sensing
Length measuring

iC-Haus Magnetic Sensor iCs:

iC-MJ	Low-Power Hall Sensor Key Features: Hall sensor for absolute evaluation of magnetic field strength Pulsed cyclic measurements (interrupted), permanently, or triggered Sensitivity adjustable in two stages Digital measurement value output in three conditions: field strength is positive, negative or close to zero Very short measurement time < 30 μs Very small power consumption (< 45 μA in pulse mode) Wide operating voltage range of 2.3 ... 5.5 V Extended temperature range from -40 to +125 °C Applications: Position sensors Battery-operated revolution counters Safety-related controls Download iC-MJ Flyer (Chinese) Download iC-MJ technical documentation More information about iC-MJ (iC-Haus website in English)

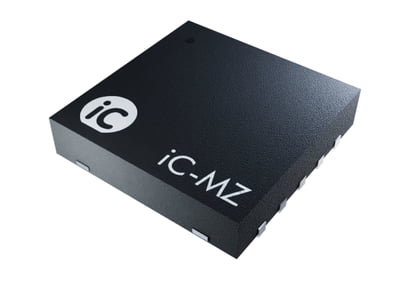

iC-MZ	Differential Hall Switch and Gear-Tooth Sensor with Line Driver Key Features: Dual Hall sensors set 2.0 mm apart Magnetic field frequency range from DC to 40 kHz Supply voltage range 4.5 to 36 V Complementary push-pull line driver outputs with integrated line adaptation Output stages are current limited and short-circuit-proof due to temperature shutdown Min. 200 mA output current at 24 V supply voltage Low driver stage saturation voltage (< 0.4 V at 30 mA) RS422-compatible (TIA / EIA standard) Temperature and supply voltage monitor with error messaging Applications: Gear wheel sensing Pole wheel and magnetic tape scanning Magnetic incremental encoders Proximity switches Two-channel line drivers up to 100 kHz Download iC-MZ technical documentation More information about iC-MZ (iC-Haus website in English)
iC-MZI	2-Wire Differential Hall Switch Key Features: Simple electric connection possible as two wire device High magnetic sensitivity with input frequency up to 30 kHz User-defined current levels preset by external resistors Automatic duty-cycle correction and operation point settings Reverse polarity protected supply voltage Applications: Gear wheel sensing Magnetic position encoders Proximity switch Download iC-MZI technical documentation More information about iC-MZI (iC-Haus website in English)
iC-SM2L	AMR Linear Position Sensor (Pitch: 2 mm) Key Features: Magneto resistive position sensor based on the AMR effect Strong field sensor for 2 mm N/S pole pitch One sine/cosine cycle per pole width (averaged using a pair of N/S poles) High interpolation due to a sine signal with few harmonics Low saturation field strength High amplitude consistency with changes in distance Resistant to strong magnetic fields Not sensitive to external homogeneous magnetic fields Applications: Linear position sensing Length measuring systems Download iC-SM2L technical documentation More information about iC-SM2L (iC-Haus website in English)
iC-SM5L	AMR Linear Position Sensor (Pitch: 5 mm) Key Features: Magneto resistive position sensor based on the AMR effect Strong field sensor for 5 mm N/S pole pitch One sine/cosine cycle per pole width (averaged using a pair of N/S poles) High interpolation due to a sine signal with few harmonics Low saturation field strength High amplitude consistency with changes in distance Resistant to strong magnetic fields Not sensitive to external homogeneous magnetic fields Applications: Linear position sensing Length measuring systems Download iC-SM5L technical documentation More information about iC-SM5L (iC-Haus website in English)
