Designed to provide reliable and cost-effective solutions for precisely driving high power loads in applications such as motor control, lighting, automation, and automotive.

The Relay/Solenoid Drivers can reduce the power dissipation in e.g. relays and magnetic valves by 50%. they are designed specifically for inductive loads, and match the behaviour of relays, controlling the current during switching and during stable state.

The FET drivers have multiple channels with level shifting and a fail-safe logic, and are suitable for PLCs and ECUs logic level FET output stages.

Applications:

• Relays
• Magnetic valves
• Photovoltaic modules
• Level shifting FET drive

iC-Haus Relay / Solenoid Driver iCs:

iC-GE

PWM Relay/Solenoid Driver for a Wide Operating Voltage Range (1 A) Key Features: Current control for inductive actuators at 24 V (10 to 36 V) High efficient current control up to 1 A Switching with power saving and reduced power dissipation Individual setting of energising and hold current Contact conserving switching of relays synchronous to the mains Monitoring of coil current, supply voltage and temperature Shutdown with overtemperature and undervoltage Status indication via LED or logic output Fast demagnetising due to 15 V countervoltage High PWM frequency with frequency spreading for low EMI Energising time of 50 ms prolongable with external capacitor Applications: PWM driver for inductive loads (e.g. relays, electrovalves) Relay low-/high-side switch Download iC-GE technical documentation Download material about iC-GE Evaluation Kits and Tools More information about iC-GE (iC-Haus website in English)

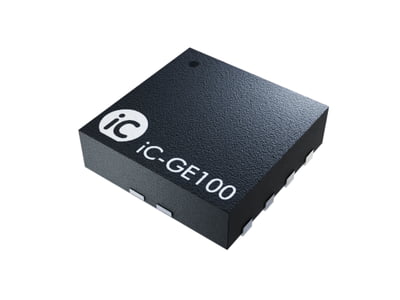

iC-GE100

PWM Relay/Solenoid Driver (100 mA) Key Features: Current control for inductive actuators at 24 V (10 to 36 V) High efficient current control up to 100 mA Switching with power saving and reduced power dissipation Individual setting of energising and hold current Contact conserving switching of relays synchronous to the mains Monitoring of coil current, supply voltage and temperature Shutdown with overtemperature and undervoltage Status indication via LED or logic output Fast demagnetising due to 15 V countervoltage Applications: PWM driver for inductive loads (e.g. relays, electrovalves) Relay low-/high-side switch Download iC-GE100 technical documentation Download material about iC-GE100 Evaluation Kits and Tools More information about iC-GE100 (iC-Haus website in English)

iC-Haus FET Driver iCs:

iC-MFL

8-Fold Fail-Safe Logic N-FET Driver Key Features: 8-/12-fold level shift to 5 V output voltage Secure low-state of the output with single faults Schmitt Trigger inputs with two-stage pull-down current for enhanced noise immunity with limited power dissipation Inputs TTL and CMOS compatible (1.8 to 3.3 to 5 V) Current limited and short-circuit proof push-pull outputs Push-pull current source to drive FET transistors Voltage-proof outputs up to 18 V (pulsed) Ground and supply voltage monitor Applications: Operation of 5 V Logic Level N-FETs out of 3.3 V systems Download iC-MFL technical documentation More information about iC-MFL (iC-Haus website in English)

Return to products page

---
