Power Management iCs
iC-Haus' Power Management iCs provide flexible autarky power supply solutions for industrial and automotive applications from a wide supply voltage range.
These iCs offer a wide functionality in a small footprint, being ideal for compact solutions. The switched-mode supply and linear regulator integrated in the same silicon provide stable supply voltages with high efficiency in comparison to traditional solutions. Dual independent outputs are ideal for separated digital and analog voltage supplies, reducing interference and allowing different supply voltages from one single iC.
Applications:
- Industrial sensors
- Rotary and linear encoders
iC-Haus Power Management iCs:

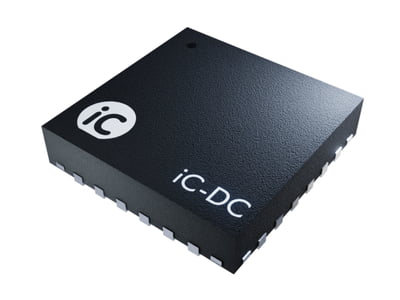

iC-DC
|
Programmable Dual 2.5/3.3/5 V Buck/Boost SMPS
Key Features:
- Wide input voltage range of 4 to 36 V
- Reverse polarity protection up to -36 V with autarky function
- Universal buck/boost converter with high efficiency
- Two back-end, adjustable linear regulators (1.5 to 5.5 V) with a total of up to 300 mA of output current and a separate output voltage monitor
- Low residual ripple with small capacitors in the μF range
- Separate enable inputs for the linear regulators
- Two switched outputs referenced to the linear regulators
- Integrated switching transistors and flyback diodes
- Converter cut-off current can be set by an external resistor
- Integrated 3 MHz oscillator with no external components
- Active noise spectrum reduction
- Error messaging with overtemperature, overvoltage, and undervoltage at the current-limited open-collector output
- QFN package requires little space and few external components
Applications:
- Dual voltage supply by buck/boost converters with adjustable, back-end linear regulators
- Power management for laser, encoder, and automotive applications
 Download iC-DC technical documentation
Download material about iC-DC Evaluation Kits and Tools
More information about iC-DC (iC-Haus website in English)
|
|
iC-WD
|
Switched-Mode Dual 5 V Regulator for 8 V to 36 V
Key Features:
- Input voltage 8 to 36 Vdc
- Four different versions for different output voltage combinations (5 V and 3.3V): iC-WD, iC-WDA, iC-WDB, iC-WDC
- Highly efficient down converter
- Switching transistor and free-wheeling diode integrated
- Adjustment of the regulator cut-off current with external resistor
- Integrated 100 kHz oscillator without external components
- Switching frequency above the audible range
- Two downstream linear regulators with 200 mA/25mA output current
- Small residual ripple with low capacitances in the μF range
- Fault message at overtemperature and undervoltage at current-limited open-collector output
- Shutdown of switching regulator at overtemperature
- Low space requirement with SO8 resp. tiny DFN10 package
Applications:
- 5 V supply e.g. from 24 V industrial network
Download iC-WD technical documentation
Download material about iC-WD Evaluation Kits and Tools
More information about iC-WD (iC-Haus website in English)
|
|
iC-WDA
|
Switched-Mode Dual 3.3 V Regulator for 8 V to 36 V
Key Features:
- Input voltage 8 to 36 Vdc
- Four different versions for different output voltage combinations (5 V and 3.3V): iC-WD, iC-WDA, iC-WDB, iC-WDC
- Highly efficient down converter
- Switching transistor and free-wheeling diode integrated
- Adjustment of the regulator cut-off current with external resistor
- Integrated 100 kHz oscillator without external components
- Switching frequency above the audible range
- Two downstream linear regulators with 200 mA/25mA output current
- Small residual ripple with low capacitances in the μF range
- Fault message at overtemperature and undervoltage at current-limited open-collector output
- Shutdown of switching regulator at overtemperature
- Low space requirement with SO8 resp. tiny DFN10 package
Applications:
- 3.3 V supply e.g. from 24 V industrial network
Download iC-WDA technical documentation
More information about iC-WDA (iC-Haus website in English)
|
|
iC-WDB
|
Switched-Mode 3.3 V (200 mA) and 5 V Regulators for 8 V to 36 V
Key Features:
- Input voltage 8 to 36 Vdc
- Four different versions for different output voltage combinations (5 V and 3.3V): iC-WD, iC-WDA, iC-WDB, iC-WDC
- Highly efficient down converter
- Switching transistor and free-wheeling diode integrated
- Adjustment of the regulator cut-off current with external resistor
- Integrated 100 kHz oscillator without external components
- Switching frequency above the audible range
- Two downstream linear regulators with 200 mA/25mA output current
- Small residual ripple with low capacitances in the μF range
- Fault message at overtemperature and undervoltage at current-limited open-collector output
- Shutdown of switching regulator at overtemperature
- Low space requirement with SO8 resp. tiny DFN10 package
Applications:
- 5 V resp. 3.3 V supply e.g. from 24 V industrial network
Download iC-WDB technical documentation
More information about iC-WDB (iC-Haus website in English)
|
|
iC-WDC
|
Switched-Mode 3.3 V and 5 V (200 mA) Regulators for 8 V to 36 V
Key Features:
- Input voltage 8 to 36 Vdc
- Four different versions for different output voltage combinations (5 V and 3.3V): iC-WD, iC-WDA, iC-WDB, iC-WDC
- Highly efficient down converter
- Switching transistor and free-wheeling diode integrated
- Adjustment of the regulator cut-off current with external resistor
- Integrated 100 kHz oscillator without external components
- Switching frequency above the audible range
- Two downstream linear regulators with 200 mA/25mA output current
- Small residual ripple with low capacitances in the μF range
- Fault message at overtemperature and undervoltage at current-limited open-collector output
- Shutdown of switching regulator at overtemperature
- Low space requirement with SO8 resp. tiny DFN10 package
Applications:
- 5 V resp. 3.3 V supply e.g. from 24 V industrial network
Download iC-WDC technical documentation
More information about iC-WDC (iC-Haus website in English)
|
