24 V, 5V Line Driver iCs
The Line Driver iCs drive encoder signals over long lines in industrial control systems.
The 24 V line drivers shift the signals from logic level to 24 V, making the signal less sensitive to external interference cause by the industrial environment. A 5 V line driver with 6 channels and Encoder Link is also available for extremely flexible interfaces, offering analog bypass modes, BiSS bus structure mode, etc.
Applications:
- Control and automation equipment
- Position sensors
iC-Haus Line Driver iCs:
iC-DL
|
3-Channel Differential Line Driver with Integrated Impedance Adaptation
Key Features:
- 6 current-limited and short-circuit-proof push-pull drivers
- Differential 3-channel operation
- Power supply range from 4 to 40 V
- Integrated 30 to 140 Ohm line adaptation
- Low output saturation voltage
- Compatible with TIA/EIA standard RS-422
- Tristate switching enables use in buses
- Short switching times and high slew rates
- Schmitt trigger inputs compatible with TTL and CMOS levels, voltage-proof up to 40 V
- Thermal shutdown
Applications:
- 24 V control engineering
- Line driver in a PLC environment
- Linear and rotary encoders
- MR sensor systems
 Download iC-DL technical documentation
Download material about iC-DL Evaluation Kits and Tools
More information about iC-DL (iC-Haus website in English)
|
|
iC-HD2
|
Quad Differential Line Driver, Pin-Compatible with xx2068
Key Features:
- Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2MHz
- Pin-compatible with xx2068
- Integrated line adaptation for high signal quality at 24V
- Moderate slew rate reduces EMI
- High driving capability of typically 200mA at 24V
- Output saturation of just 0.3 V at 40 mAdc
- Tristate function with excessive temperature
- Error messaging with excessive temperature and undervoltage
- TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40 V
- Tristate function for bus applications
- Integrated 5 V voltage regulator for 5mA
- 4.5 to 35 V single supply operation with low static power dissipation
Applications:
- Line drivers for 24 V control engineering
- Linear scales and encoders
- Sensor systems
Download iC-HD2 technical documentation
Download material about iC-HD2 Evaluation Kits and Tools
More information about iC-HD2 (iC-Haus website in English)
|
|

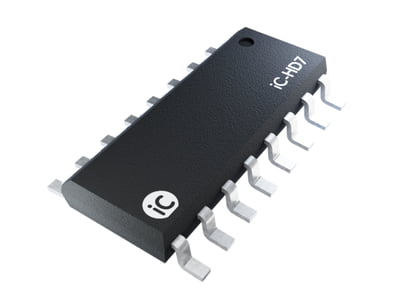

iC-HD7
|
Quad Differential Line Driver, Pin-Compatible with xx7272 and 26LS31
Key Features:
- Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2MHz
- Pin-compatibel with 26LS31, xx7272
- Integrated line adaptation for high signal quality at 24V
- Moderate slew rate reduces EMI
- High driving capability of typically 200mA at 24V
- Output saturation of just 0.3 V at 40 mAdc
- Excessive temperature shutdown
- TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40 V
- Tristate function for bus applications
- 4.5 to 35 V single supply operation with low static power dissipation
Applications:
- Line drivers for 24 V control engineering
- Linear scales and encoders
- Sensor systems
Download iC-HD7 technical documentation
Download material about iC-HD7 Evaluation Kits and Tools
More information about iC-HD7 (iC-Haus website in English)
|
|
iC-HE
|
Triple Differential Line Driver
Key Features:
- Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2MHz
- SO14N package pin-compatible to ET9600
- Integrated line adaptation for high signal quality at 24V
- Moderate slew rate reduces EMI
- High driving capability of typically 200mA at 24V
- Output saturation of just 0.3 V at 40 mAdc
- Tristate function with excessive temperature
- TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40 V
- Tristate function for bus applications
- 50 mA LED driver with ISET input for current control
- 4.5 to 35 V single supply operation with low static power dissipation
Applications:
- Line drivers for 24 V control engineering
- Linear scales and encoders
- Sensor systems
Download iC-HE technical documentation
More information about iC-HE (iC-Haus website in English)
|
|
iC-HF
|
6-Chan. RS-422 Encoder Link - Line Driver/Receiver
Key Features:
- Versatile 3+3 channel RS-422 line driver/receiver
- Pin-configured as driver (6x) or driver/receiver (3x/3x or 4x/2x)
- Supports BiSS bus structure and BiSS bus loopback
- Unique Encoder Link mode: analog switches to bridge 9 lines
- Differential short-circuit-proof push-pull outputs
- Driving capability of 30 mA typ. at 3 V
- Reduced EMI due to output current limitation
- Output shutdown with undervoltage and overtemperature
- Suits various line impedances, allows 100 Ohm termination
- Up to 10 MHz input/output frequency
- Reverse-polarity-proof operation from 3.0 V to 5.5 V
Applications:
- Differential cable driver
- Motion control encoders
- Control engineering
- Sensor bus structures with BiSS
Download iC-HF technical documentation
Download material about iC-HF Evaluation Kits and Tools
More information about iC-HF (iC-Haus website in English)
|
|
iC-HX
|
3-Channel Differential Line Driver with Reduced Power Dissipation
Key Features:
- 6 current-limited and short-circuit-proof push-pull drivers
- Differential 3-channel operation
- Power supply range from 4 to 40 V
- Integrated 30 to 140 Ohm line adaptation
- 200 mA output current (at VB = 24 V)
- Low output saturation voltage (< 0.4 V at 30 mA)
- Compatible with TIA/EIA standard RS-422
- Tristate switching enables use in buses
- Short switching times and high slew rates
- Schmitt trigger inputs compatible with TTL and CMOS levels, voltage-proof up to 40 V
- Thermal shutdown
- Low static power dissipation, Dynamic power dissipation reduced with iC-xSwitch
Applications:
- Line driver for 24 V control engineering
- Linear scales and rotary encoders
- MR sensor systems
Download iC-HX technical documentation
Download material about iC-HX Evaluation Kits and Tools
More information about iC-HX (iC-Haus website in English)
|
|
iC-VX
|
3-Channel Differential Line Driver with Complementary 24 V Outputs
Key Features:
- Driver supply voltage of 4.5 to 30 V
- Push-pull driver current-limited and short-circuit-proof
- Programmable driving capability of 30 mA or 100 mA
- Integrated freewheeling diodes
- TTL-/CMOS-compatible hysteresis inputs with pull-up current sources
- Selectable input reference level
- Thermal shutdown
Applications:
- Line driver for 24 V control engineering
Download iC-VX technical documentation
Download material about iC-VX Evaluation Kits and Tools
More information about iC-VX (iC-Haus website in English)
|
|
iC-WE
|
3-Channel 75 Ohm Line Driver for RS422 and 24 V Applications
Key Features:
- Driver supply voltage of 4.5 to 30 V
- Push-pull driver current-limited and short-circuit-proof
- Guaranteed driving capability of 30 mA
- Integrated cable adaptation with thermal protection
- Tri-state and invert mode
- TTL-/CMOS-compatible hysteresis inputs with pull-up sources
- Meets EIA standard RS422 (with two iCs used)
- Error output with thermal shutdown and low voltage
Applications:
- 24 V signal transfer
- Line driver in a PLC environment
Download iC-WE technical documentation
Download material about iC-WE Evaluation Kits and Tools
More information about iC-WE (iC-Haus website in English)
|
