LEDs

iC-Haus' LEDs provide parallel light and a homogenous beam profile, dedicated for the use in high resolution optical encoders.

Different LED sizes and packages are available in order to optimally fit the encoder's optical sensor size. All the LEDs emit infrared light and work with high efficiency, providing high optical output power at low currents.

Applications:

Optical encoders

iC-Haus LEDs:

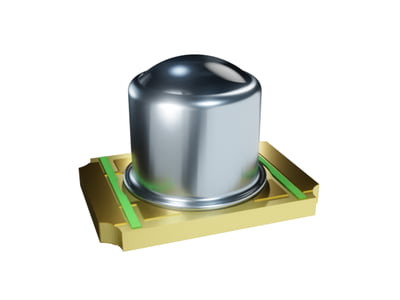

iC-SD85	Infrared 850 nm LED with Lens / Flat Glass for High-Resolution Optical Encoders Key Features: Emission peak at 850 nm matched to silicon sensors Optimized irradiance pattern High temperature range -40 to 125 °C High optical output power Fast switching speed Packages suitable for SMT mounting Applications: Illumination for high resolution optical encoder Modulated light barriers Download iC-LED Flyer (Chinese) Download iC-SD85 technical documentation More information about iC-SD85 (iC-Haus website in English)
iC-SG85	Infrared 850 nm LED with Plastic Lens for High-Quality Large Area Illumination in High-Resolution Optical Encoders Key Features: Emission peak at 850 nm matched to silicon sensors Optimized irradiance pattern High temperature range -40 to 125 °C High optical output power Fast switching speed Packages suitable for SMT mounting Applications: Illumination for high resolution optical encoder Modulated light barriers Download iC-LED Flyer (Chinese) Download iC-SG85 technical documentation More information about iC-SG85 (iC-Haus website in English)
iC-SN85	Infrared 850 nm LED with Plastic Lens for High-Quality Large Area Illumination in High-Resolution Optical Encoders Key Features: Emission peak at 850 nm matched to silicon sensors Optimized 6 mm irradiance pattern High temperature range -40 to 125 °C High optical output power Fast switching speed Packages suitable for SMT mounting Applications: Illumination for high resolution optical encoder Modulated light barriers Download iC-LED Flyer (Chinese) Download iC-SN85 technical documentation More information about iC-SN85 (iC-Haus website in English)
iC-TL46	460 nm Blue LED Key Features: Emission peak at 460 nm High temperature range -40 to 100 °C High optical output power High switching speed Narrow irradiance pattern Applications: Illumination for high resolution optical encoder Modulated light barriers Download iC-LED Flyer (Chinese) Download iC-TL46 technical documentation More information about iC-TL46 (iC-Haus website in English)
iC-TL6	Point Source LED Key Features: Point Source LED High brightness Ultra Red LED Glass cover High temperature range -40 to 125 °C SMD 1206 LED Package Applications: Illumination for high resolution optical encoders, PSDs and optical line-scanners Modulated light barriers Download iC-TL6 BLCC2 1206 Datasheet (Chinese) Download the whitepaper "Masked Point-Source LEDs" (Chinese) Download iC-TL6 technical documentation More information about iC-TL6 (iC-Haus website in English)
iC-TL85	Infrared 850 nm LED with Lens or Flat Window for High-Resolution Optical Encoders Key Features: Emission peak at 850 nm matched to silicon sensors High temperature range -40 to 125 °C High optical output power Fast switching speed TO-46 package (flat or lens window) for high reliability Applications: Illumination for high resolution optical encoder Modulated light barriers Download iC-LED Flyer (Chinese) Download iC-TL85 technical documentation More information about iC-TL85 (iC-Haus website in English)
