iC-Haus 磁性传感器芯片提供使用霍尔或 AMR (磁阻效应) 技术的差分磁场传感器。

此磁传感器性能高，抗电磁干扰性强，适合工业应用。霍尔开关产品带数字输出与集成线驱动器，AMR传感器输出能插补细分的强模拟正余弦信号。

应用:

• 线性位置感应
• 齿轮感应
• 测距

iC-Haus 磁性传感器芯片:

iC-MJ	低功耗霍尔传感器 特性: Hall sensor for absolute evaluation of magnetic field strength Pulsed cyclic measurements (interrupted), permanently, or triggered Sensitivity adjustable in two stages Digital measurement value output in three conditions: field strength is positive, negative or close to zero Very short measurement time < 30 μs Very small power consumption (< 45 μA in pulse mode) Wide operating voltage range of 2.3 ... 5.5 V Extended temperature range from -40 to +125 °C 应用: Position sensors Battery-operated revolution counters Safety-related controls 下载 iC-MJ 简单介绍 (中文版) 下载 iC-MJ 技术文档 更多信息关于 iC-MJ (iC-Haus 英文网站)

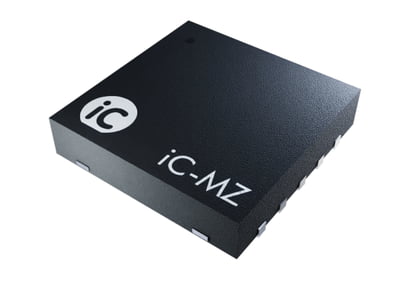

iC-MZ	差分霍尔开关和齿轮传感器, 带线驱动器 特性: Dual Hall sensors set 2.0 mm apart Magnetic field frequency range from DC to 40 kHz Supply voltage range 4.5 to 36 V Complementary push-pull line driver outputs with integrated line adaptation Output stages are current limited and short-circuit-proof due to temperature shutdown Min. 200 mA output current at 24 V supply voltage Low driver stage saturation voltage (< 0.4 V at 30 mA) RS422-compatible (TIA / EIA standard) Temperature and supply voltage monitor with error messaging 应用: Gear wheel sensing Pole wheel and magnetic tape scanning Magnetic incremental encoders Proximity switches Two-channel line drivers up to 100 kHz 下载 iC-MZ 技术文档 更多信息关于 iC-MZ (iC-Haus 英文网站)
iC-SM2L	AMR 线性位置磁阻效应传感器 (间距: 2 mm) 特性: Magneto resistive position sensor based on the AMR effect Strong field sensor for 2 mm N/S pole pitch One sine/cosine cycle per pole width (averaged using a pair of N/S poles) High interpolation due to a sine signal with few harmonics Low saturation field strength High amplitude consistency with changes in distance Resistant to strong magnetic fields Not sensitive to external homogeneous magnetic fields 应用: Linear position sensing Length measuring systems 下载 iC-SM2L 技术文档 更多信息关于 iC-SM2L (iC-Haus 英文网站)
iC-SM5L	AMR 线性位置磁阻效应传感器 (间距: 5 mm) 特性: Magneto resistive position sensor based on the AMR effect Strong field sensor for 5 mm N/S pole pitch One sine/cosine cycle per pole width (averaged using a pair of N/S poles) High interpolation due to a sine signal with few harmonics Low saturation field strength High amplitude consistency with changes in distance Resistant to strong magnetic fields Not sensitive to external homogeneous magnetic fields 应用: Linear position sensing Length measuring systems 下载 iC-SM5L 技术文档 更多信息关于 iC-SM5L (iC-Haus 英文网站)
