iC-Haus LED (发光二极管) 输出高平行度光和均匀照明，专门用于高分辨率光电编码器应用。

不同型号带不同 LED 大小和封装，能最佳配合编码器的光电传感器大小。所有 LED 发红外线光，高效率操作，只需低电流就可满足编码器要求。

应用:

• 光电编码器

iC-Haus LED 发光二极管:

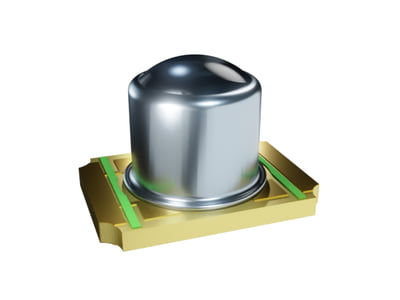

iC-SD85	红外线 850 nm LED 特性: Emission peak at 850 nm matched to silicon sensors Optimized irradiance pattern High temperature range -40 to 125 °C High optical output power Fast switching speed Packages suitable for SMT mounting 应用: Illumination for high resolution optical encoder Modulated light barriers 下载 iC-LED 简单介绍 (中文版) 下载 iC-SD85 的技术文档 更多信息关于 iC-SD85 (iC-Haus 英文网站)
iC-SG85	红外线 850 nm LED 特性: Emission peak at 850 nm matched to silicon sensors Optimized irradiance pattern High temperature range -40 to 125 °C High optical output power Fast switching speed Packages suitable for SMT mounting 应用: Illumination for high resolution optical encoder Modulated light barriers 下载 iC-LED 简单介绍 (中文版) 下载 iC-SG85 的技术文档 更多信息关于 iC-SG85 (iC-Haus 英文网站)
iC-SN85	红外线 850 nm LED 特性: Emission peak at 850 nm matched to silicon sensors Optimized 6 mm irradiance pattern High temperature range -40 to 125 °C High optical output power Fast switching speed Packages suitable for SMT mounting 应用: Illumination for high resolution optical encoder Modulated light barriers 下载 iC-SN85 的技术文档 更多信息关于 iC-SN85 (iC-Haus 英文网站)
iC-TL46	蓝光 460 nm LED 特性: Emission peak at 460 nm High temperature range -40 to 100 °C High optical output power High switching speed Narrow irradiance pattern 应用: Illumination for high resolution optical encoder Modulated light barriers 下载 iC-LED 简单介绍 (中文版) 下载 iC-TL46 的技术文档 更多信息关于 iC-TL46 (iC-Haus 英文网站)
iC-TL6	点光源 640 nm LED 特性: Point Source LED High brightness Ultra Red LED Glass cover High temperature range -40 to 125 °C SMD 1206 LED Package 应用: Illumination for high resolution optical encoders, PSDs and optical line-scanners Modulated light barriers 下载 iC-TL6 BLCC2 1206 数据手册 (中文版) 下载文章 "掩膜点光源LED优化传感器照明" (中文版) 下载 iC-TL6 的技术文档 更多信息关于 iC-TL6 (iC-Haus 英文网站)
iC-TL85	红外线 850 nm LED 特性: Emission peak at 850 nm matched to silicon sensors High temperature range -40 to 125 °C High optical output power Fast switching speed TO-46 package (flat or lens window) for high reliability 应用: Illumination for high resolution optical encoder Modulated light barriers 下载 iC-LED 简单介绍 (中文版) 下载 iC-TL85 的技术文档 更多信息关于 iC-TL85 (iC-Haus 英文网站)
